Moving from Excel to Google Maps:
Transit Data and an Introduction to GTFS
Malcolm Meyer
2021 Ohio GIS Conference
What is Wisdom
[The goal is] not to develop full confidence in everything you do, but to become confident in the fact that you probably don’t know what you’re doing.
What is GTFS?
The General Transit Feed Specification (GTFS) is a data specification that allows public transit agencies to publish their transit data in a format that can be consumed by a wide variety of software applications. Today, the GTFS data format is used by thousands of public transport providers.
The Static Feed
A GTFS feed, which contains static transit information, is composed of a number of text (.txt) files that are contained in a single ZIP file. Each file describes a particular aspect of transit information: stops, routes, trips, fares, etc.
Required Tables
| Filename | Required | Description |
|---|---|---|
| agency.txt | Required | Transit agencies |
| stops.txt | Required | Transit Stops and stations |
| routes.txt | Required | Transit routes and loops |
| trips.txt | Required | Specific schedule per route |
| stop_times.txt | Required | Arrival and deaprture times |
| calendar.txt | Conditional | Weekly Scheudle |
| calendar_dates.txt | Conditional | Schedule Exceptions |

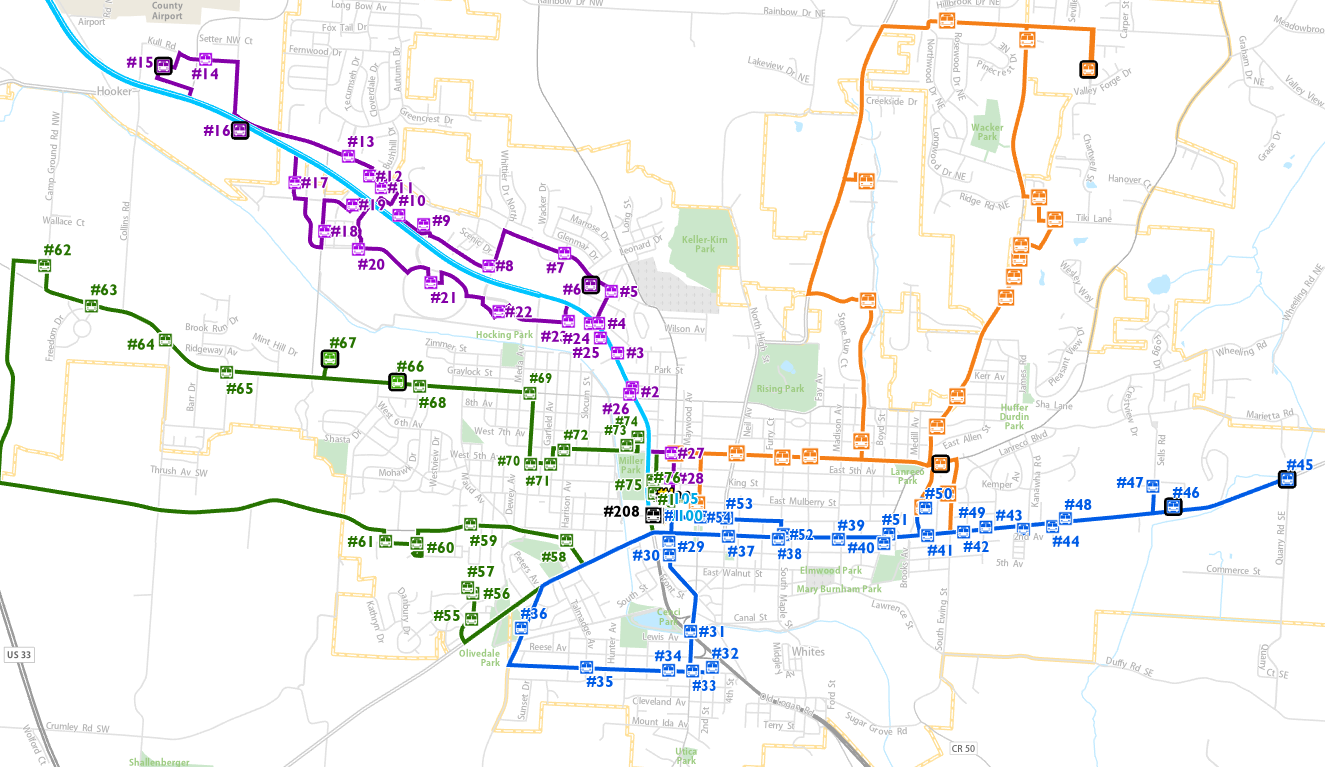

Existing Data
- Stops (Points) stops.txt
- Routes (Lines) routes.txt
Manually Create Tables
| Filename | Required | Description |
|---|---|---|
| agency.txt | Required | Transit agencies |
| stops.txt | Required | Transit Stops and stations |
| routes.txt | Required | Transit routes and loops |
| trips.txt | Required | Specific schedule per route |
| stop_times.txt | Required | Arrival and deaprture times |
| calendar.txt | Conditional | Weekly Scheudle |
| calendar_dates.txt | Conditional | Schedule Exceptions |
agency.txt
| agency_name | agency_url | agency_timezone | agency_lang | agency_phone |
|---|---|---|---|---|
| Lancaster-Fairfield Public Transit System | https://www.ci.lancaster.oh.us/242/Transit | America/New_York | en | 7406815086 |
calendar.txt
| service_id | monday | tuesday | wednesday | thursday | friday | saturday | sunday | start_date | end_date |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 20210101 | 20220101 |
| 2 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 20210101 | 20220101 |
calendar_dates.txt
| service_id | date | exception_type |
|---|---|---|
| 1 | 20211231 | 2 |
| 1 | 20210331 | 2 |
| 1 | 20210704 | 2 |
| 1 | 20211006 | 2 |
| 1 | 20211125 | 2 |
| 1 | 20211224 | 2 |
| 2 | 20211231 | 2 |
| 2 | 20210331 | 2 |
| 2 | 20210704 | 2 |
| 2 | 20211006 | 2 |
| 2 | 20211125 | 2 |
| 2 | 20211224 | 2 |
Routes, Stops & Trips
How can we create these required tables from our exiting GIS data?
- Excel Tool from National RTAP
- Custom NodeJS Script
NodeJS Scripted Tables
| Filename | Required | Description |
|---|---|---|
| agency.txt | Required | Transit agencies |
| stops.txt | Required | Transit Stops and stations |
| routes.txt | Required | Transit routes and loops |
| trips.txt | Required | Specific schedule per route |
| stop_times.txt | Required | Arrival and deaprture times |
| calendar.txt | Conditional | Weekly Scheudle |
| calendar_dates.txt | Conditional | Schedule Exceptions |
NodeJS Script
- Load the manually created files
- Convert existing data to GeoJSON and load into NodeJS
- Iterate through all the routes and stops to create the necessary tables
function genRoutes(geojson, filepath) {
const routeIds = [];
const routeNames = [];
let routesTxt = "route_id,route_short_name,route_long_name,route_color,route_text_color,route_type";
geojson.features.forEach(f => {
const p = f.properties;
const names = p.route_short_name.split(",");
const id = p.route_id;
names.forEach(n => {
if (!routeNames.includes(n)) {
routesTxt += ["\n"+ id,id,n,p.route_color,p.route_text_color,"3"].join(",");
routeNames.push(n);
routeIds.push(id)
}
})
});
fs.writeFileSync(filepath, routesTxt, "utf-8")
}
routes.txt
| route_id | route_short_name | route_long_name | route_color | route_text_color | route_type |
|---|---|---|---|---|---|
| 1 | 1 | MEMORIAL | 8400A8 | FFFFFF | 3 |
| 2 | 2 | MAIN | 185BE8 | FFFFFF | 3 |
| 3 | 3 | WEST | 38A800 | FFFFFF | 3 |
| 6 | 6 | SHERIDAN | f57f17 | FFFFFF | 3 |
| 7 | 7 | CARROLL OUTBOUND | 00bfff | FFFFFF | 3 |
| 8 | 8 | CARROLL INBOUND | 00bfff | FFFFFF | 3 |
| 9 | 9 | RICKENBACKER OUTBOUND | 000000 | FFFFFF | 3 |
| 10 | 10 | RICKENBACKER INBOUND | 000000 | FFFFFF | 3 |
| 5 | 5 | PICKERINGTON | FF00C5 | FFFFFF | 3 |
Stops, Trips & Stop Times
Similar process for
stops.txtandtrips.txt. However thestop_timestable is a bit more complex, even so the functional code is less than 200 lines.
stops.txt
| stop_name | stop_id | stop_lat | stop_lon |
|---|---|---|---|
| Job And Family Services | 1 | 39.71517362 | -82.6059031 |
| Memorial Dr @ Reber Ave | 2 | 39.72492779 | -82.6084866 |
| Plaza Shopping Center (Advance Auto Parts) | 3 | 39.72757795 | -82.6099478 |
| Memorial Dr @ S Arlington Ave | 4 | 39.72984435 | -82.6117948 |
| S Arlington Ave @ Columbus St | 5 | 39.73226791 | -82.6105694 |
| Pershing House (Upon Request) | 6 | 39.73275969 | -82.6125984 |
| Columbus St @ Bowlan Dr. | 7 | 39.73518691 | -82.6151732 |
| Whittier Dr S @ Schorrway Dr | 8 | 39.73422017 | -82.6226934 |
| Lowes | 9 | 39.73735893 | -82.6292069 |
| Golden Corral | 10 | 39.73809083 | -82.6316346 |
| FMC (Columbus St) | 11 | 39.74018154 | -82.6334001 |
trips.txt
| route_id | service_id | trip_id |
|---|---|---|
| 1 | 1 | 1_1 |
| 1 | 1 | 1_2 |
| 1 | 1 | 1_3 |
| 1 | 1 | 1_4 |
| 1 | 1 | 1_5 |
| 1 | 1 | 1_6 |
| 5 | 2 | 5_1 |
| 5 | 2 | 5_2 |
| 5 | 2 | 5_3 |
| 5 | 2 | 5_4 |
Issues

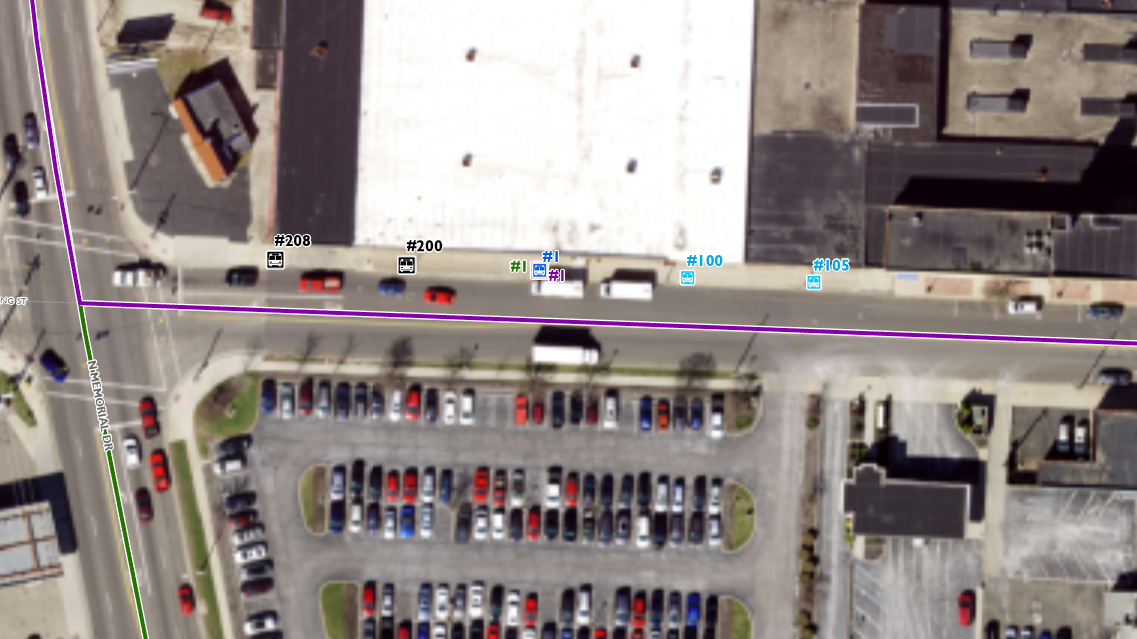

- Some lines route through the same stop.
- Workaround: create duplicate stop points for each route as needed.
- Google GTFS cannot use request only stops.
- Workaround: remove those stops from the Google feed.
- Stop times are on 5 minute intervals.
- Workaround: manually edit arrival times.
trip_times.txt
| trip_id | stop_id | arrival_time | departure_time | stop_sequence | drop_off_type | timepoint |
|---|---|---|---|---|---|---|
| 1_1 | 1 | 7:00:00 | 7:00:00 | 1 | 0 | 0 |
| 1_1 | 2 | 7:01:00 | 7:01:00 | 2 | 0 | 0 |
| 1_1 | 3 | 7:02:00 | 7:02:00 | 3 | 0 | 0 |
| 1_1 | 4 | 7:03:00 | 7:03:00 | 4 | 0 | 0 |
| 1_1 | 5 | 7:04:00 | 7:04:00 | 5 | 0 | 0 |
| 1_1 | 6 | 7:05:00 | 7:05:00 | 6 | 3 | 0 |
| 1_1 | 7 | 7:06:00 | 7:06:00 | 7 | 0 | 0 |
| 1_1 | 8 | 7:08:00 | 7:08:00 | 8 | 0 | 0 |

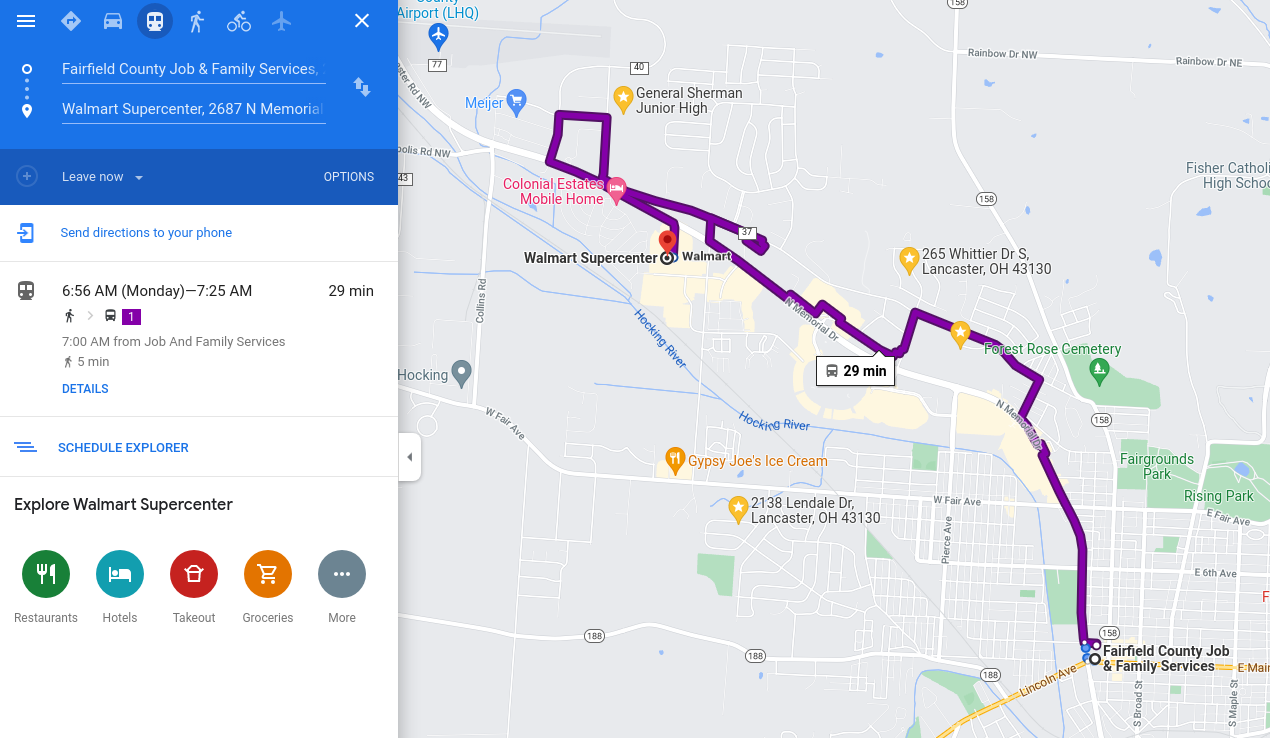

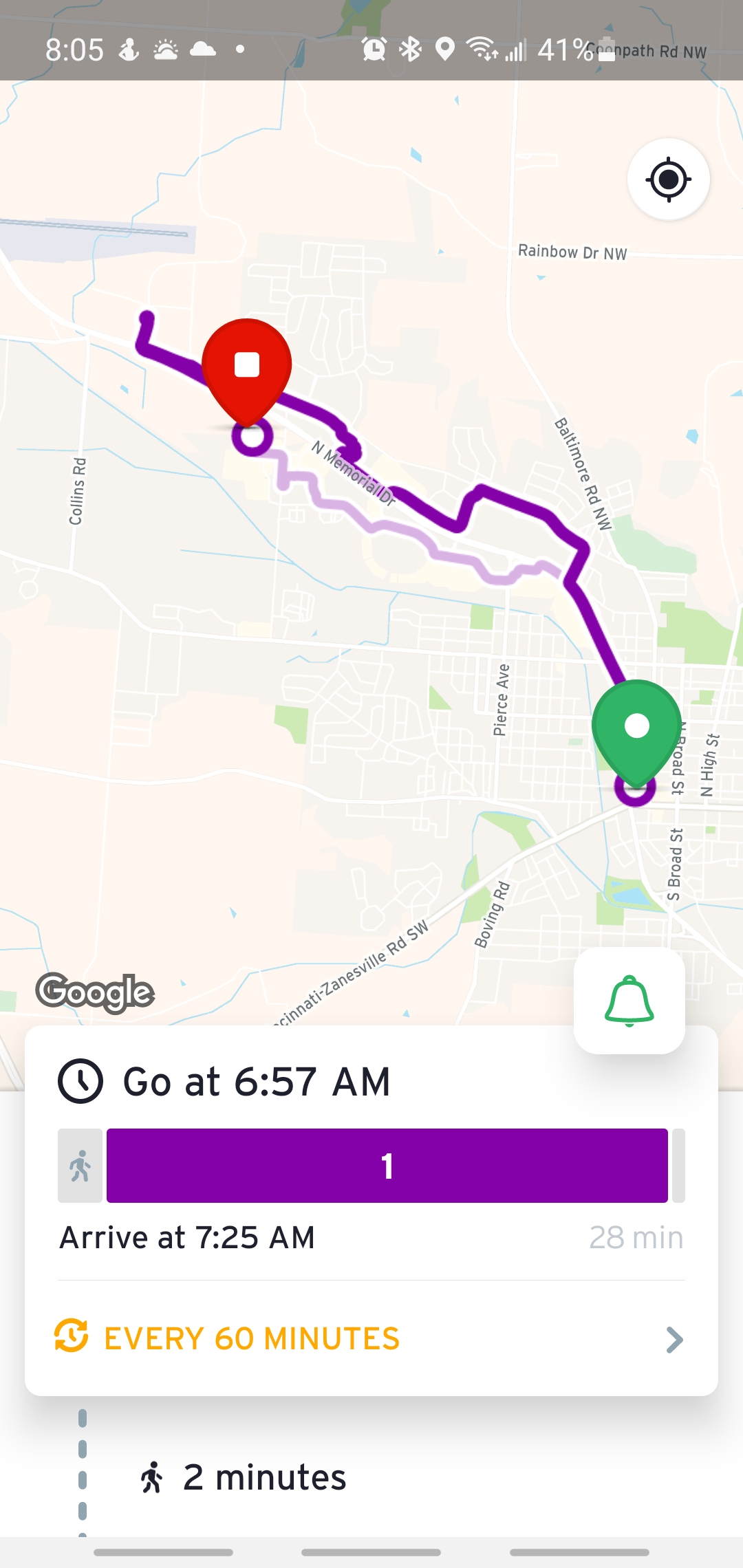

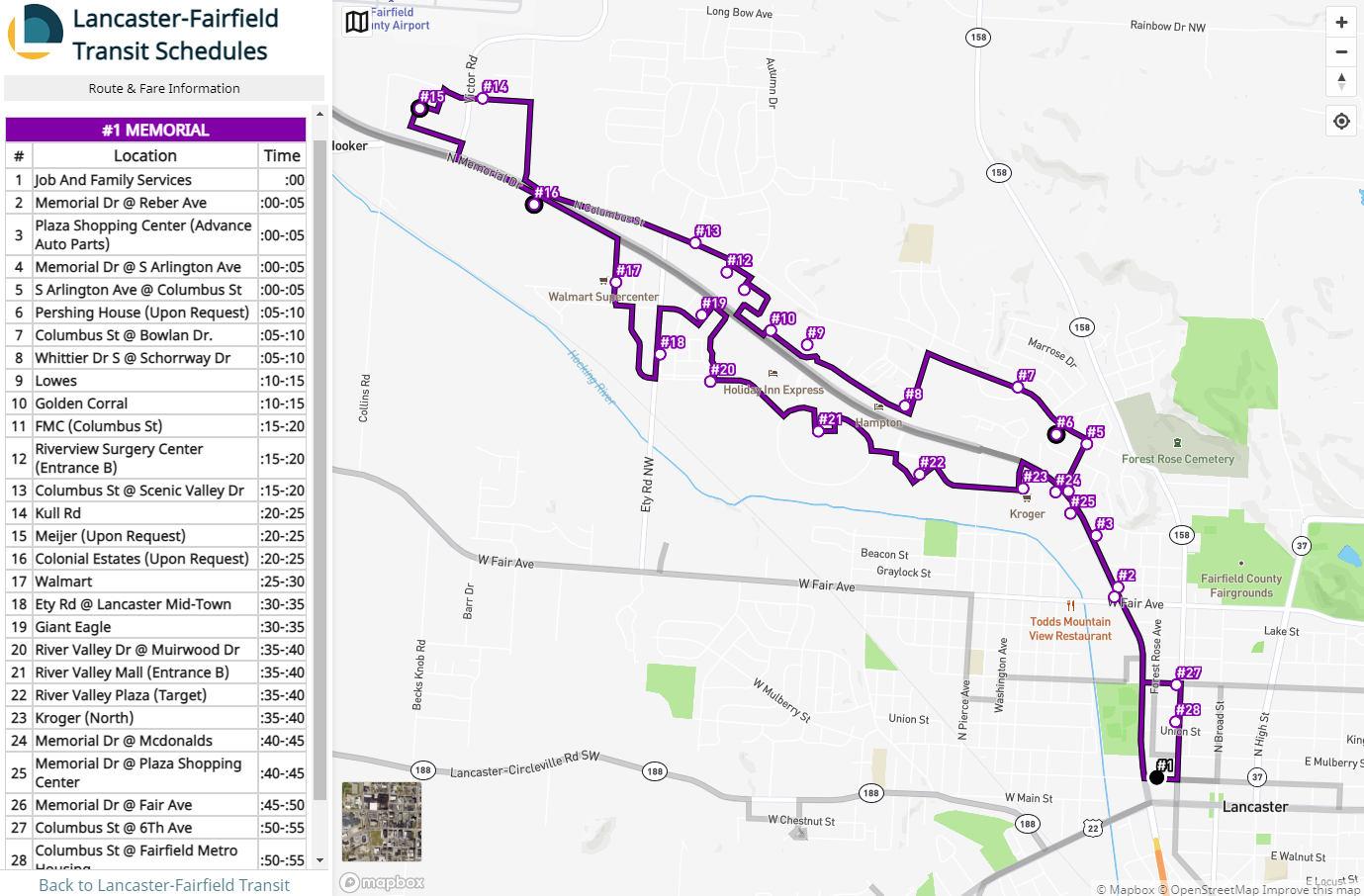

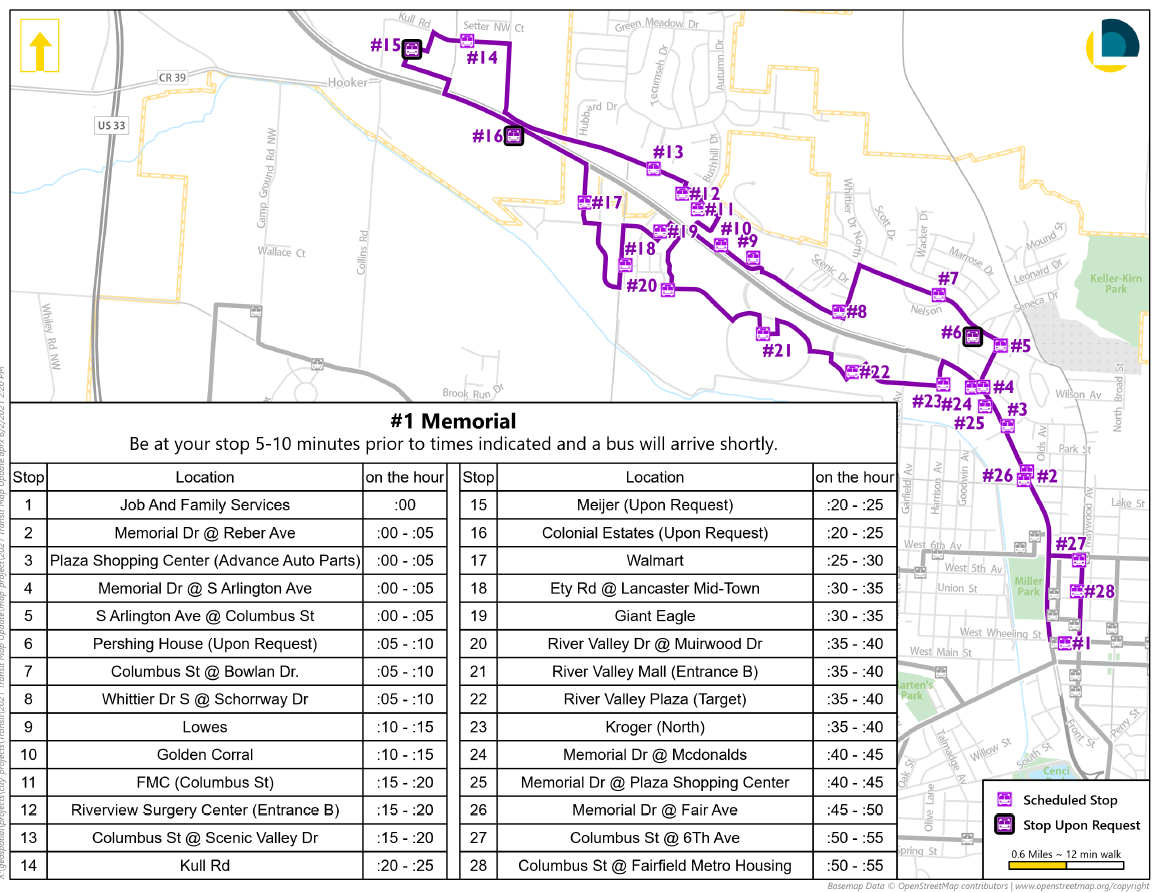

Final Outputs
Contracts!
Google requires a signed contract which has contains language that may not be acceptable for some municipalities or agencies.
Thanks
Malcolm Meyer
@getBounds on twitter and the web
